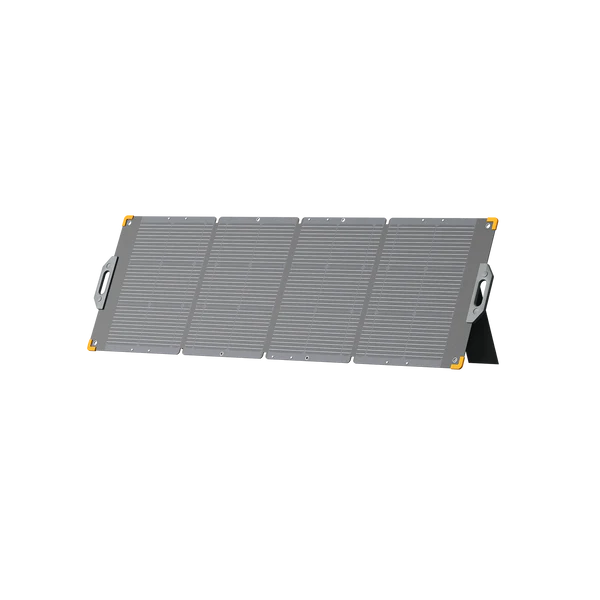

PECRON PV100 100W Portable Solar Panel Waterproof IP67
PV100
₱7,900.00
PECRON PV100 100W Solar Panel Connector is DC5521 Port
| Technische Parameter | |
| Model Number | PV100 |
| Cell Type | Monocrystalline |
| Peak Power | 105W+5% |
| Voltage at Max Power(Vmp) | 19.4V+5% |
| Current at Max Power(lmp) | 5.4A+5% |
| Open Circuit Voltage(Voc) | 24.5V+5% |
| Open Circuit Current(lsc) | 5.8A+5% |
| Cell Efficiency | 23.5% |
| Operating Temperature | -20°C~+60°C |
| Ingress Protection(lP) Rating | IP67 |
| Fold Dimensions | 475*426*42+1mm |
| Unfold Dimensions | 1740*426*27+1mm |
| Solar panel weight (with adapter cable) | About 3.5kg |
| Standard Test Conditions | 1000w/m2(92.9W/ft2), AM1.5, 25”C(77°F) |
Store method
When the solar panels are not in use, please store them upright,
don't stack heavy and sharp objects on them, so as not to damage the solar panels. and avoid placing them in places with standing water.
Product Specs
Specs in Pictures
General
Weight:
About 16.1 lbs (7.3 kg)
Dimensions:
11.8 x 8.6 x 7.76 in / 30 x 21.9 x 19.7 cm
Charge Temperature:
32~113 °F (0~45°C)
Discharge Temperature:
14~113°F (-10~45°C)
Warranty:
3+2 Years
Battery
Capacity:
15.2Ah/41.6V DC (632.3 Wh)
Cell Chemistry:
LiFePO4
Charge Temperature:
32~113 °F (0~45°C)
Cycle life:
4000 cycles to 70%+ capacity
Output Ports
AC Output:
(1x) 30W Max, 5V⎓3A / 9V⎓3A / 12V⎓2.5A / 15V⎓2A / 20V⎓1.5A,
(1x) 100W Max, 5V⎓3A / 9V⎓3A / 12V⎓3A / 15V⎓3A / 20V⎓5A
(1x) 100W Max, 5V⎓3A / 9V⎓3A / 12V⎓3A / 15V⎓3A / 20V⎓5A
AC Total Output:
2x 120V~ 60Hz, 6.67A
USB-A Output:
18W Max, 5–6V⎓3A / 6–9V⎓2A / 9–12V⎓1.5A
Car Port Output:
12V⎓10A Max
USB-C Output:
800W Rated, 1600W Surge peak
Input Ports
Charge Mode AC Input:
100V-120V~ 60Hz, 15A Max
Bypass Mode AC Input/Output:
100V-120V~ 60Hz, 12A Max
DC Input:
16V-60V⎓10.5A/200W Max
